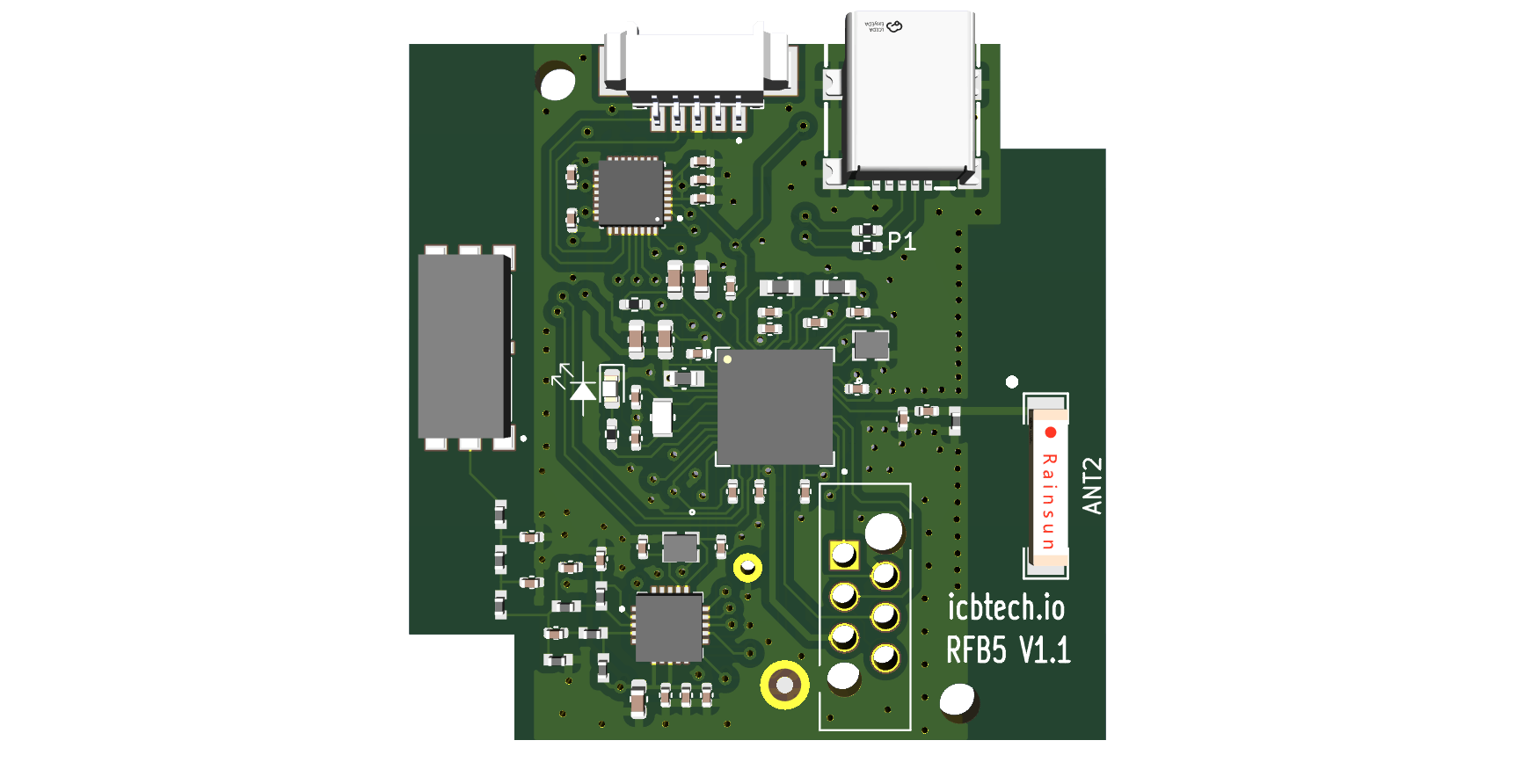

RF Beacon 5 is a compact, multi‑protocol beacon operating in the 868 MHz and 2.4 GHz bands, with support for Bluetooth®. It delivers reliable RF, audio, and timecode beaconing for synchronization, localization, and control in professional Audio-Visual (AV) and event environments.

Key Benefits

  1. Multi‑band, Multi‑protocol Operation
    RF Beacon 5 combines 868 MHz and 2.4 GHz wireless modes, supporting both proprietary RF and Bluetooth® operation. This dual‑band flexibility lets users choose the optimal range, signal penetration, and compatibility for each deployment.
  2. Audio and Timecode Synchronization
    Beyond standard data beaconing, RF Beacon 5 distributes audio and linear timecode (LTC) signals with broadcast‑grade precision, enabling frame‑accurate synchronization across cameras, lighting, playback, or other time‑sensitive devices.
  3. Integrated Local Signaling
    A built‑in buzzer and GPIO interface provide direct interaction with connected systems, offering immediate feedback, alerts, or trigger outputs - turning RF Beacon 5 into an active part of wider control networks.
  4.  Professional‑grade Reliability
    Engineered for broadcast, studio, and live‑event use, RF Beacon 5 delivers stable performance and predictable timing even in congested RF conditions. Its robust design ensures consistent operation in multi‑device, mixed‑protocol setups.

Interfaces and Connectivity

Interface / Feature Function Typical Use
868 MHz RF Band Long‑range wireless link using proprietary low‑band protocol Reliable beaconing or control in large venues and complex environments
2.4 GHz Band / Bluetooth® Mode Short‑range communication compatible with common Bluetooth® ecosystems iBeacon mode, device identification, proximity or status broadcast
Audio Input (Line‑level) Accepts analog audio signals Wireless audio cue distribution or audio‑synchronized beaconing
LTC Input (Linear Timecode) Receives SMPTE‑compatible timecode Frame‑accurate synchronization for cameras, recorders, and playback systems
GPIO / Trigger I/O Single configurable digital input/output pin External trigger or status indication within connected systems
Buzzer (Local Alert) Built‑in acoustic indicator Audible confirmation or event signaling on site
USB Port Configuration, and power interface Device setup from PC
Status Indicators LED and visual status feedback

Immediate confirmation of mode and operation

Note:
RF Beacon 5 supports over‑the‑air (OTA) firmware updates; the USB port is intended for device configuration, and power only.

All interfaces can operate simultaneously.

Applications

RF Beacon 5 is designed for professional environments where reliable synchronization and control signals are essential. Its flexible wireless architecture adapts easily across a wide range of workflows - from compact mobile setups to multi‑zone installations.

Broadcast and Film Production

Provides frame‑accurate timecode distribution and wireless cueing between cameras, recorders, and playback systems. Reduces cabling and setup time while maintaining precise synchronization on set or location.

Live Events and Stage Control

Supports audio, RF, and trigger‑based control for lighting, sound, and show elements. Dual‑band operation ensures consistent performance even in congested RF environments.

Studios, Theatres, and Installations

Serves as a central beacon or synchronization node for fixed AV systems, maintaining reliable timing between recording, playback, and automation components.

Mobile and Transport Infotainment Systems

Supports synchronized audio, video, and control distribution in transport and large‑vehicle environments such as buses, trains, ships, or aircraft cabins. RF Beacon 5 provides a wireless timing and beaconing layer for multi‑screen playback, passenger information systems, or interactive content, ensuring consistent and coordinated delivery across zones.

Exhibitions and Interactive Displays

Delivers RF for motion‑activated or spatially aware installations, coordinating audio, video, and lighting based on audience interaction.

Summary

With its flexible dual‑band design and support for multiple signaling formats, RF Beacon 5 functions as a unified source for synchronization and control across a broad range of professional and transport applications. It simplifies timing coordination, reduces wiring complexity, and complements modern AV and system‑integration workflows.
